Link Lock to Gateway

To link a Lock to a Gateway you must place the Gateway into the link mode.



  1. Connect to the Gateway in the Engage app.

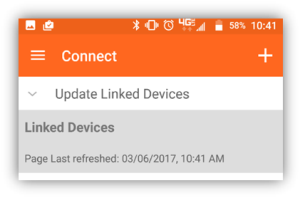

  1. Select the “Manage Linked Devices” option.

  2. Tap the [+] button at top of screen and scroll to the desired lock number. You must set the lock address to a number that is within the high/low range settings of the selected Gateway.

  3. Tap [Done] button.

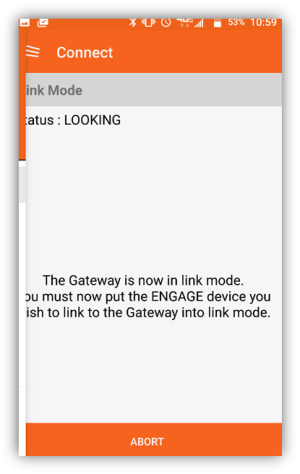

  4. Then tap the [>] next button at top of screen (this invokes linking mode at the Gateway) .

  5. At the Schlage Lock, hold down the REX (inside lever) and present a card. This will put the lock into link mode. (You must hold down the REX lever until the reader LED is blinking.)

  6. The Engage app may prompt to confirm this is the correct reader (LED flashing on the reader).

  7. Tap the [Link] button to link the Lock/Reader to the Gateway.

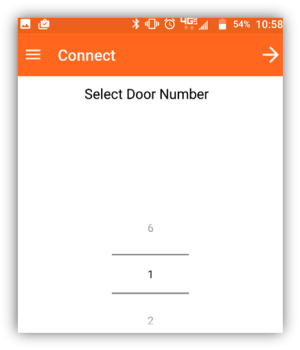

  1. Select a unique Door Number to assign to the Lock (1 – 16 is valid; zero is not supported).  You must choose a number that is within the High/Low Range assigned to the Gateway.





  1. Tap [Done] then [>] Next Button at the top of the screen. This initiates the Gateway linking.

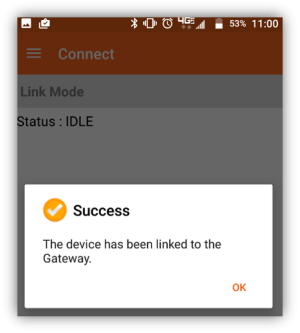

  1. When the Engage app is finished configuring the Lock, you should see a success prompt.

  2. Tap OK to finish.
